New Compact Rugged Mechanical Scissor Switch Dual Mode RGB Backlit Plastic Keyboard EAK222289

Additional information

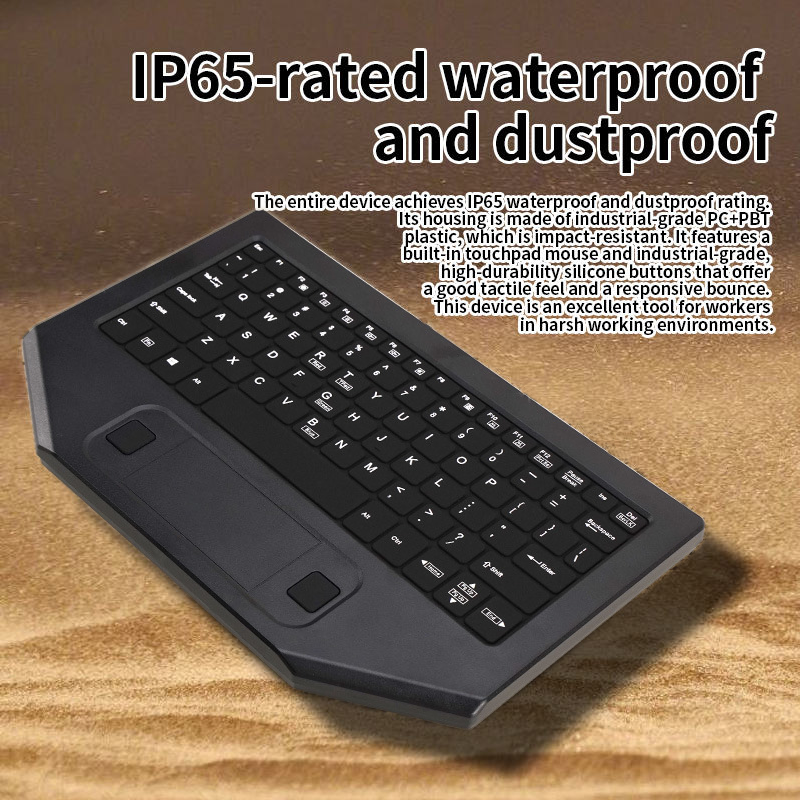

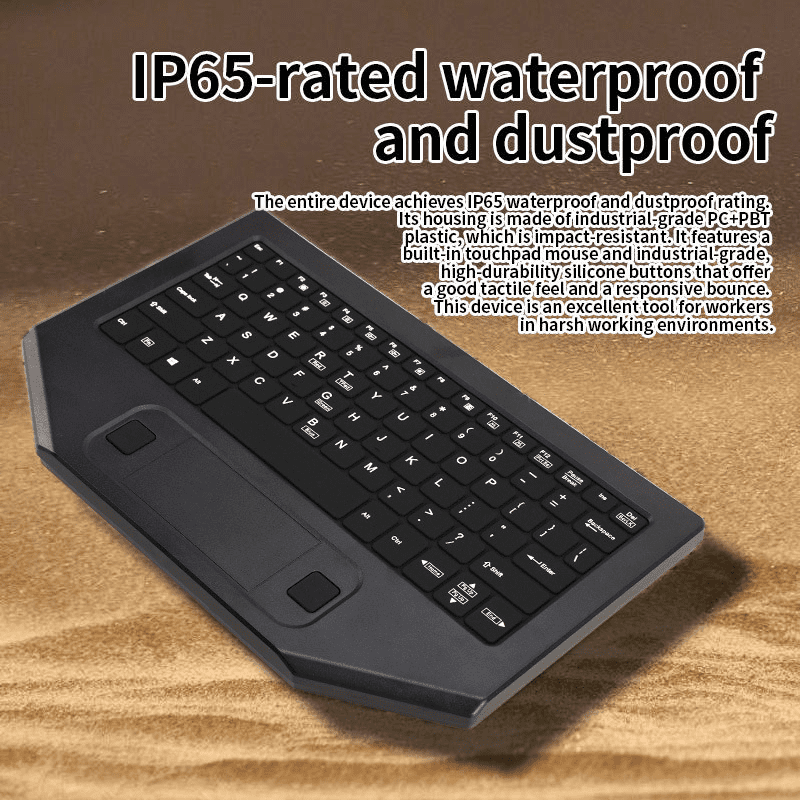

Rugged industrial design, built-in touch-pad mouse,IP65 rated

79 mini notebook scissor-switch keys with good tactile feel and industrial silicone mold protection

With RGB Backlight

Adopts industrial-grade, high-durability silicone rubber keys with good resilience

Silicone surface with spray-painted, laser-engraved characters, and additional silicone coating for enhanced character durability

Durable shell made of industrial-grade PC+PBT plastic,impact-resistant

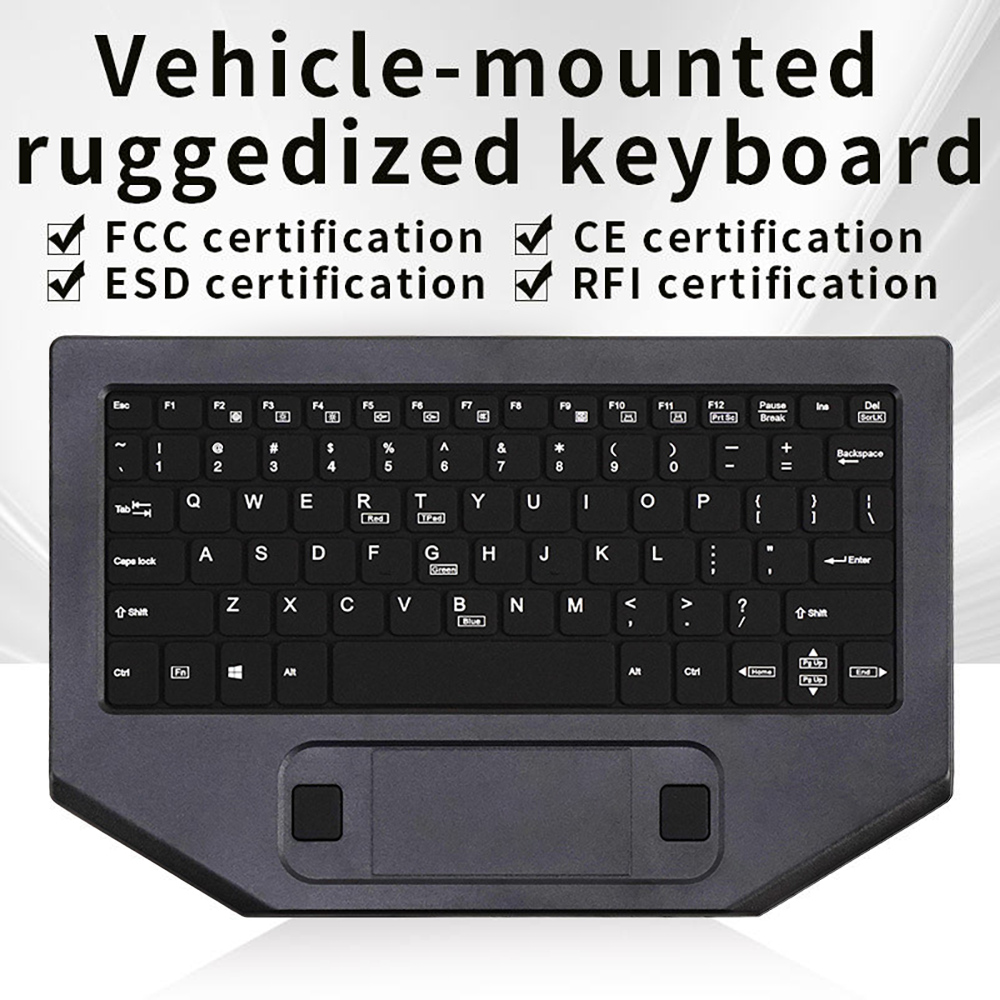

FCC, CE, ESD, and RFI Certified

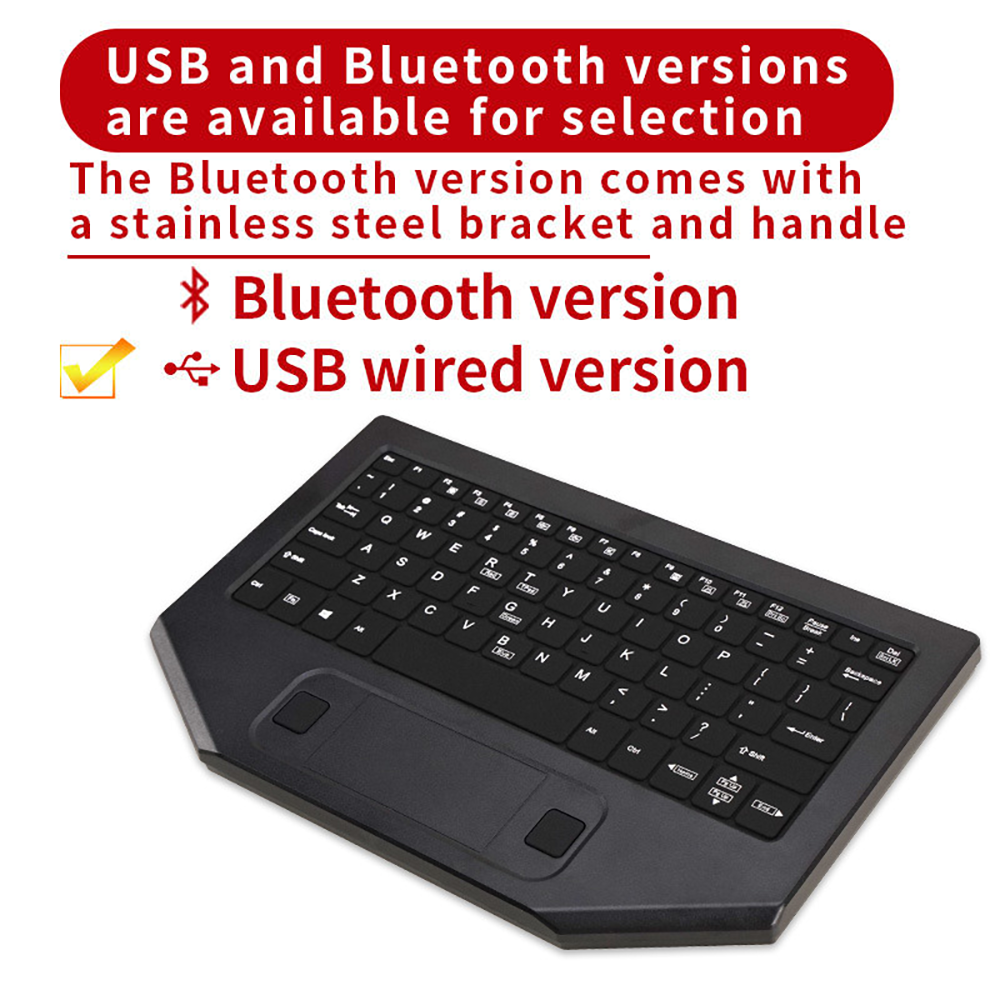

USB and Bluetooth versions available

Bluetooth version comes with a stainless steel stand and handle

PRODUCT PARAMETERS
Electronics		Dimensions
USB Version	Power Input: +5V/DC	USB Version: 271x177x17.5mm
	Current: <100MA
Bluetooth Version	BLE Device	Bluetooth Version: 271x177x17.5 mm
	Speed: 1MBPS
	RF Range: 2402-2480MHZ
	Transmit Signal Strength: 0dBm
	Receive Signal Strength: -96 dBm typ
	Built-in PCB antenna
	Lithium Battery: 1000mAH
Touchpad Mouse		Mechanical
Effective Sensing Area: 77mmx39mm		Total Travel: 1.2±0.2mm
Touch Principle: Mutual Capacitance Sensing		Maximum Load: 60 ±20cN
X/Y Position Sensing Resolution: Up to 12 times per second		Key Lifespan: 5 million actuations

Movement Speed: Up to 1,016 mm per second
Lifespan (Surface Protection Layer): At least 10,000,000 touches (500km)

Sampling Rate: Up to 125 samples per second
Other
Storage Temperature: -55°C to +85℃
Operating Temperature: -20C to +50℃
Operating Humidity: 40% to 90%
Shell Material: PC+PBT
